TWO-BALL CHECK VALVE MECHANISM
Click to enlargeClick to enlarge Description

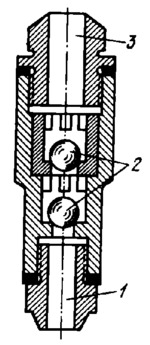

Fluid under pressure flows upward through inlet port 1, overcoming the weights of balls 2 and pushing them off their seats, to outlet port 3. Two balls are provided to prevent leakage and reverse flow more reliably.
$3596$SHP,Va$

Linked items
Documents: Hydraulic, pneumatic and electric mechanisms  [Streambook]
