RELIEF VALVE MECHANISM
Click to enlargeClick to enlarge Description

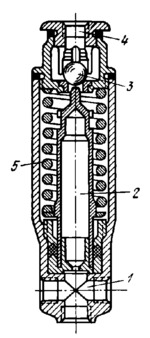

When the pressure of the fluid flowing through ports 1 exceeds the preset value, controlled by the force exerted by helical spring 5, plunger 2 is lifted and it opens ball valve 3 allowing fluid to flow out freely through port 4.
$3613$SHP,Va$

Linked items
Documents: Hydraulic, pneumatic and electric mechanisms  [Streambook]
