STARTING VALVE MECHANISM

Click to enlargeClick to enlarge Description

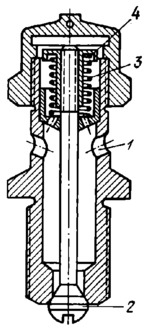

When the pressure of the air entering through ports 1 exceeds a preset value, controlled by the setting of helical spring 3, valve 2 is pushed downward and air is admitted into the system. Spring 3, regulated by threaded member 4, returns valve 2 to its initial position.
$3621$SHP,Va$

Linked items
Documents: Hydraulic, pneumatic and electric mechanisms  [Streambook]
