PNEUMATIC PISTON-TYPE ACCUMULATOR MECHANISM
Click to enlargeClick to enlarge Description

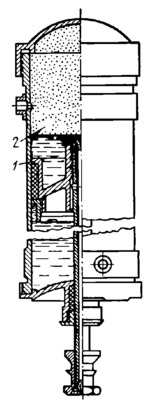

As piston 1 is moved upward, air in upper space 2 is compressed, accumulating potential energy. The liquid serves to prevent the air from leaking through from one space to the other (below the piston).
$3786$SHP,FD$

Linked items
Documents: Hydraulic, pneumatic and electric mechanisms  [Streambook]
